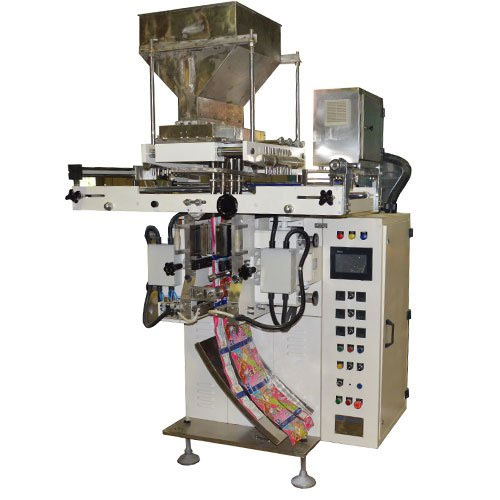

| Product Specification | Fully Automatic Multi lane machine, suitable for packing small sachet of Granules& Powder such as Tea , coffee, Tobacco, Mouth Freshener, Hair Dyes, Detergents, Digestive salt in a 4 side seal . |
|---|
| Machine speed | Up to 80 SPM/Per Track depending on the product & sachet/pouch dimension. |
|---|
| Packing range | Suitable to pack 2-50g ,depending upon product characteristic |
|---|
| No. of tracks | Up to 8 tracks depending on sachet/pouch width |
|---|
| Max. roll width | 800 mm |
|---|
| Max. roll dia | 350 mm |
|---|
| Max length of pouch | Up to 200 mm |
|---|
| Film draw mechanism | Options Servo based Electromagnetic clutch and break |
|---|
| Web controller | Options Electronic web edge control. Pneumo hydraulic web edge controller |
|---|
| Compressed air | 3-4 CFM @ 6 kg/cm sq. |
|---|
| Electrical power required | Up to 10KW |
|---|
| Main Body Frame | Option MS with Powder coating. MS with SS cladding |
|---|
| Type of Sealing | 4 Side Sealing |
|---|
| Machine dimension | 2830 mm X 1300 mm X 2000 (Height mm X Width mm X Length mm) |
|---|
| Net weight | 1800 kg |
|---|
