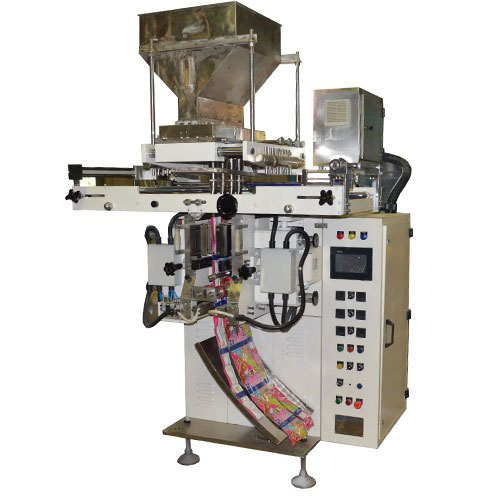

Multi Track FFS Machine for granules & Powder
Multi Track FFS Machine for granules & Powder


Product Specification Fully Automatic Multi lane machine, suitable for packing small sachet of Granules& Powder such as Tea , coffee, Tobacco, Mouth Freshener, Hair Dyes, Detergents, Digestive salt in a 4 side seal .
Machine speed Up to 80 SPM/Per Track depending on the product & sachet/pouch dimension.
Packing range Suitable to pack 2-50g ,depending upon product characteristic
No. of tracks Up to 8 tracks depending on sachet/pouch width
Max. roll width 800 mm
Max. roll dia 350 mm
Max length of pouch Up to 200 mm
Film draw mechanism Options Servo based Electromagnetic clutch and break
Web controller Options Electronic web edge control. Pneumo hydraulic web edge controller
Compressed air 3-4 CFM @ 6 kg/cm sq.
Electrical power required Up to 10KW
Main Body Frame Option MS with Powder coating. MS with SS cladding
Type of Sealing 4 Side Sealing
Machine dimension 2830 mm X 1300 mm X 2000 (Height mm X Width mm X Length mm)
Net weight 1800 kg
