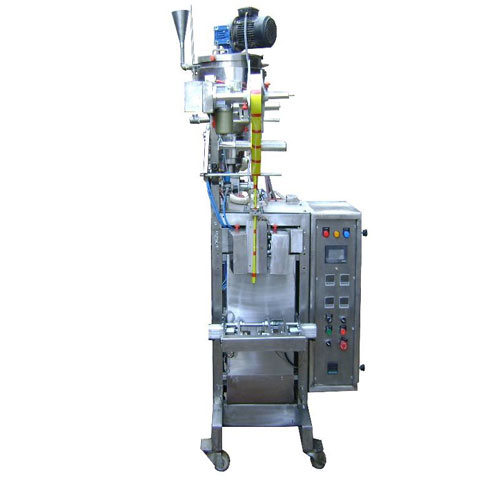

Stick Packing Machine
VFFS (Stick Pack) an PLC Controlled intermittent Center /Side Seal Stick /Sachet making machine can pack various kind of Powder, Granule, Liquid . Semi Liquid Suitable for wide range of heat sealable film such as PET / MET BOPP / POLY or PET/POLY, Paper or Al- Foil laminate. Etc. Easy change over time. All Product Contact parts are made of SS-316, / SS-304.
SFeatures:
| PLC controlled, Colored & Touch MMI with digital display Delta Make |
| Pulling Mechanism through Induction Motor& Vector A C Drive, |
| Sealing System Pneumatically Operated |
| Filling System Spool Valve Type with Pneumatically Operated |
| Pouch Type Centre Seal/Three Side Seal |
| Machine Speed 35-40 Stick Per minute |
| Gear Box Altra / Bon Vario etc. |
| Power Required 415 V , 3 phase, 50 Hz, 3 Kw |
| Power Required 415 V , 3 phase, 50 Hz, 3 Kw |
| Dry Compressed air, 4-5 cfm@ 6 bar |
| Notching for Easy tear, could be in different shape Optional |
| Jacketed hopper along with stirrer system Optional as per product Characteristic |
| Pneumatic valve and cylinder SMC / FESTO make |
| PID temperature Controller Yertex / Omron Make |
| Photocell, Data logic Italy |
| Motorized Unwinding |
